Rival Wall or Rack Mounted Adjustable Cable Pulley System


Rival Wall or Rack Mounted Adjustable Cable Pulley System
Product Description and Specification

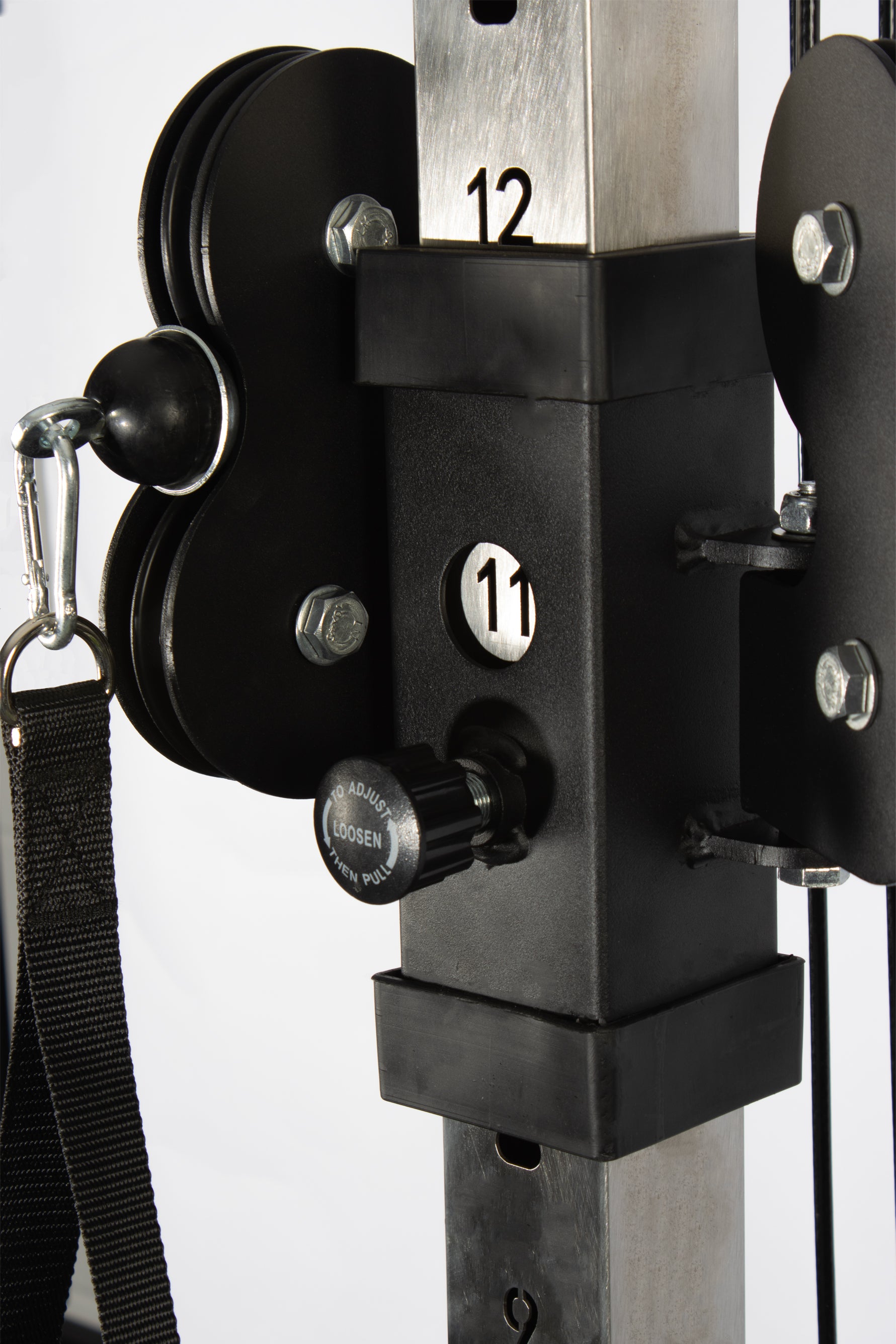

Rival Strength's Wall or Rack Mounted Cable Pulley System offers 15 pulley height positions from low to high. The dual handles can be easily adjusted up and down the numbered main stainless steel upright, with the pulley ratio being 2:1 when using a single handle or 1:1 when connecting both handles together. More info on ratios below!
The Cable Machine includes two back stabilising points to mount onto your wall or rack, these utilise elongated slots to mitigate any alignment issues with studs, mortar joints, or holes on your racks upright.
Please get in touch to confirm compatibility with your rack or wall.

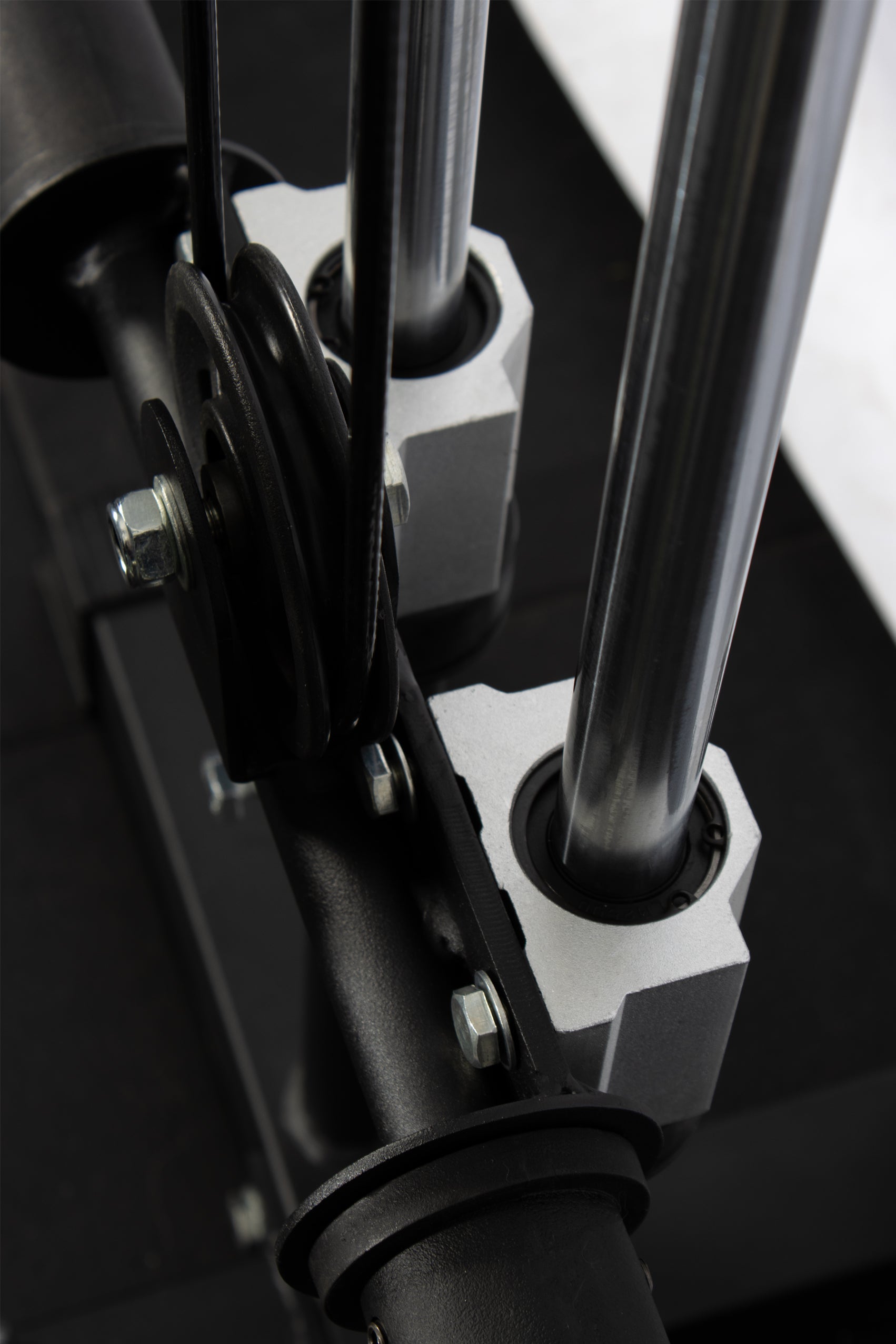

The carriage system runs on chromed guide rods with needle bearings inside the carriage itself, resulting in a smooth motion when using the pulley. Bearings are also very hardwearing, reducing the risk of damage or failure.
What are ratios?
A 2:1 Ratio means the weight being lifted is half the weight loaded onto the plate carriage (40KG feels like 20KG), a 1:1 ratio you would be lifting the full weight loaded onto the carriage (40KG feels like 40KG). The benefit of a 2:1 ratio over a 1:1 ratio is the distance the handle can be pulled. The handle can move twice the distance compared to a 1:1 ratio, giving you more room for larger cable flies and any exercise that requires the cable to move further, while also offering smaller increments when adjusting the weight. Please get in touch if you have any questions on this, we would be happy assisting!
Product Details:

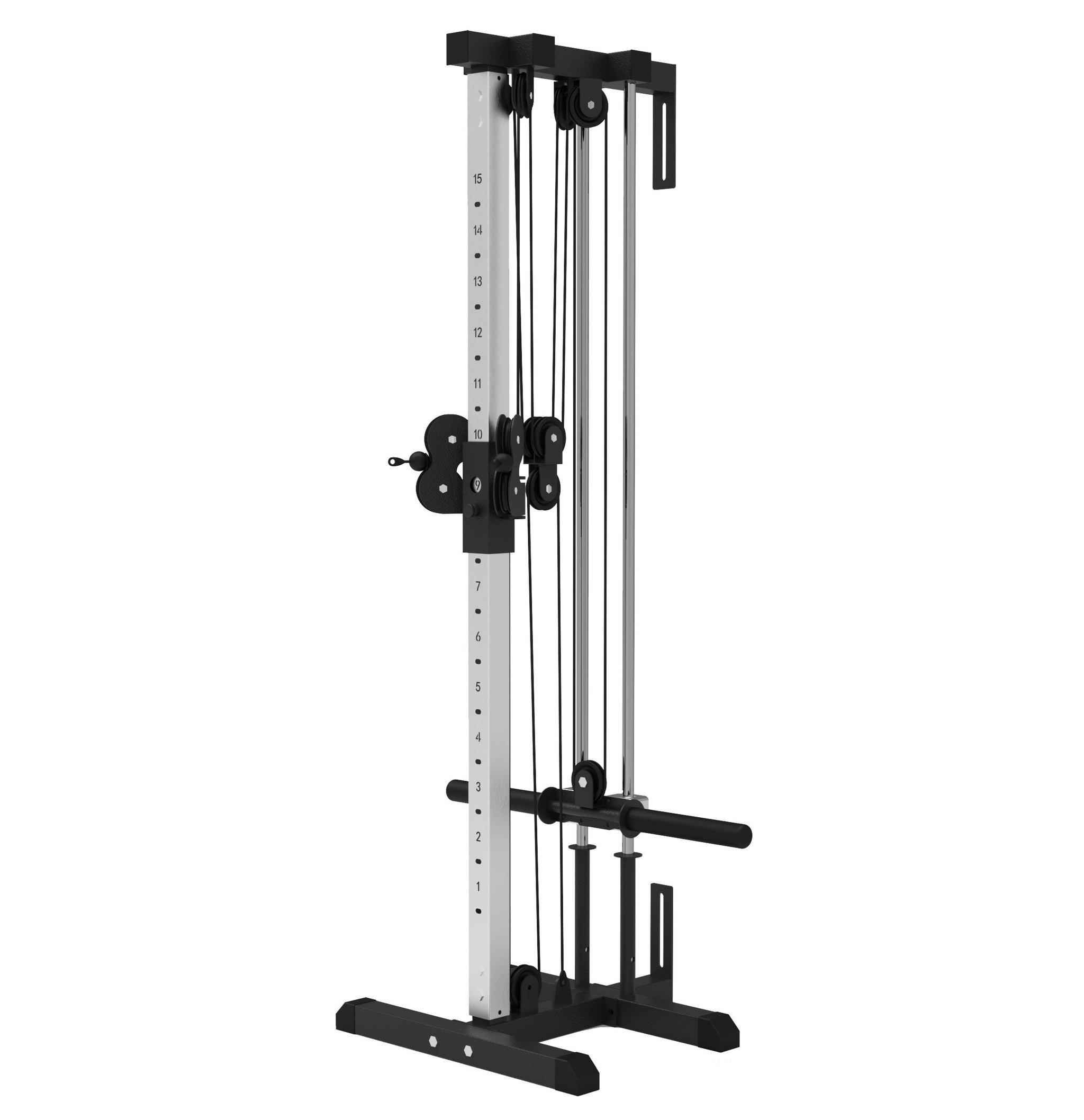

Wall or Rack Mounted Cable Pulley Machine
Standard (1") and Olympic (2") plate loading poles (Sleeve can be removed for 1" plates to be loaded on).
Powder coated steel frame with stainless steel front upright. This prevents scratching and rusting.
Chrome steel guide rods
Dual enclosed bearings used in the plate carriage
Numbered laser cut height adjustment holes

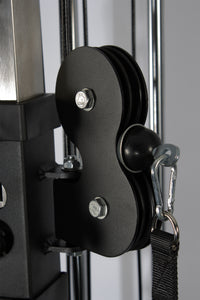

Dual handle design
2:1 and 1:1 pulling ratios
2 x D-Handles and carabiners included
Product Specification:
Height - 2020mm
Total Depth (Base) - 630mm
Total depth from the front upright - 560mm
Width - 880mm
Clearance from edge of plate loading pin to wall - 230mm (Suitable for loading bumper plates)
Highest cable pulley position - 1700mm
200KG Max Load Capacity
Elongated wall mount fixing point positions:
- Bottom fixing position between 90mm and 240mm from the floor
- Top fixing position between 1790 and 1940mm from the floor
Loadable length of plate poles: 300mm x 2
1-Year Warranty!
